OCA for Film Type Touch SensorOptical Clear Adhesive Sheet (OCA) MO series
OCA* for touch sensor. Ideal for bonding various optical films such as transparent conductive films.
*OCA: Optical Clear Adhesive

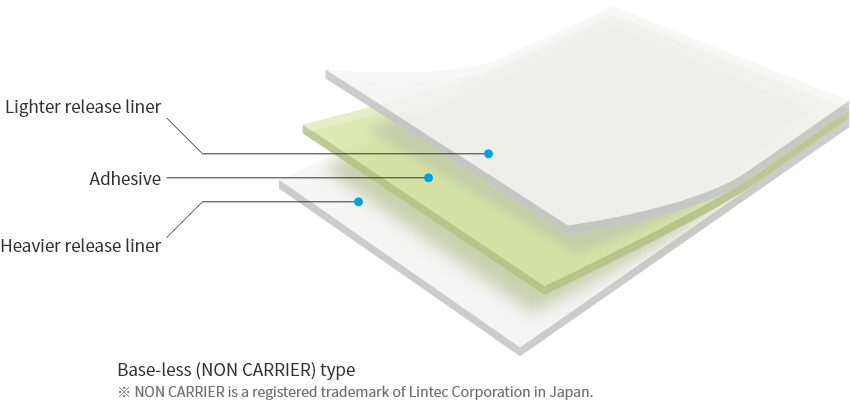

Composition
Features
High adhesive against various films
Suppresses deterioration and changes in resistance of transparent conductive films of various metals
UV cut performance can be added
Ion-migration resistance performance
+ Electrode
General OCA
NG
Ion-migration resistance performance
OK
Ion migration resistant type
No electrode elution
- Electrode
General OCA
NG
Ion-migration resistance performance
OK
Ion migration resistant type
No electrode elution
Application
- Bonding of components of in-vehicle displays, mobile devices, and various other displays
- Bonding of film sensors / film sensors and cover panels / film sensors
Product Line-up
| Product name | Adhesive Thickness [μm] |
Adhesion (1) [N/25mm] |
Optical properties (2) | Permittivity | Transparent conductive film type | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Total Transmittance [％] |
Haze [％] |
0.1MHz | 1MHz | ITO | Cu | Ag | ||||||
| MO-T015 | 25～125 | 25 | ＞99 | ＜1.0 | 4.4 | 3.9 | ◎ | 〇 | 〇 | Acid-free Low dielectric constant |
||
| MO-5025XV | 25～125 | 25 | ＞99 | ＜1.0 | 5.4 | 4.5 | ◎ | ◎ | ◎ | Acid-free UV cut Ion-migration resistance performance |
||
| MO-5015XV | 25～250 | 51 | ＞99 | ＜1.0 | 5.3 | 4.6 | ◎ | ◎ | ◎ | Acid-free UV cut Ion-migration resistance performance |
||
Test condition
- Applied surface：Soda-lime glass, Base-Film：PET film(100µm), Adhesive thickness：100µm
Bonding time: 24 hours, Measurement environment：23℃50%R.H., Peeling speed：300mm/min, Peeling angle：180° - Sample composition：Soda-lime glass/Adhesive
The values reported in the data are actual measured values and not guaranteed.
