Light Diffusion FilmLight Diffusion Film DF series
This unique light diffusion film has a refractive index distribution structure inside the film. By using light efficiently, it is able to contribute to high visibility and energy saving in display devices. The diffuse shape (anisotropic/isotropic) and diffusion angle can be adjusted depening on the purpose.
Light Diffusion Film DF series usage image
Digital signage
Cycling navigation
( Trans-reflective liquid crystal )
Smart watch
( Trans-reflective liquid crystal )
Composition
Features

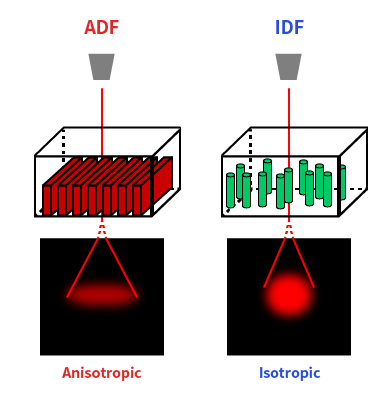

Unique light diffusion behavior (anisotropic type diffusion / isotropic type diffusion)
Louver structure → Anisotropic Diffusion (ADF)
Columnar structure → Isotropic Diffusion (IDF)

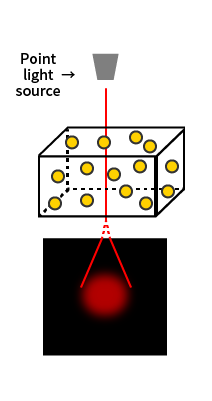

Conventional light diffusion film
ADF / IDF
Incident light angle for diffusion can be controlled
Excellent uniformity of diffused light
High transparency (non-diffusion area)
Low-backscattering
Maintenance of polarization
Application
Projection screens, Reflective displays, Smart watches, etc.
Product Line-up
| Type | Capable thickness |
Example | ||||
|---|---|---|---|---|---|---|
| Internal structure image |
Product name | Thickness | Diffusion area (High haze area) (1) |
Diffuse light distribution(2) | ||
| H type (Single columnar) |
60～120 |  |
HDA060 | 60μm | -35°～-2° |  |
 |
HAA120 | 120μm | -19°～+19° |  |
||
| G type (Bent single columnar) |
60～110 |  |
GBA060 | 60μm | -29°～+12° |  |
| D type (Double columnar) |
140～200 |  |
DCB200 | 200μm | -49°～+14° |  |
| F type (Bent double columnar) |
140～200 |  |
FCB200 | 200μm | -56°～+17° |  |
| I type (Single louver ) |
100～160 |  |
IKA130 | 130μm | ＜ -70°～-43° |  |
| E type (Louver and Columnar) |
140～200 |  |
EDB200 | 200μm | -41°～+22° |  |
- Set by variable haze meter,threshold=93%
※Threshold Haze60% only for I type - Transmission mode, Incident angle=0°
※Point light source incident angle 50° only for I type
The values reported in the data are actual measured values and not guaranteed.
